“We have tested hydraulic cylinders manufactured for L&T Mitsubishi, Hazira, India at 750 bars. To see their testimonial for this project we did for them email us. ”

— Kirti Mistry (Proprietor)

HYDRAULIC CYLINDERS

With our vast experience in engineering we have solutions for any kind of challenging problems. We have a list of case histories to back this up. We have manufactured hydraulic cylinders up to 400 mm bore and 2000 mm stroke in house. And we have the capability to go in to bigger sizes as well as numbers.

QUALITY

We believe in 100% testing before dispatch. Hydraulic cylinders are used diversely and each application comes with a different set of forces and challenges on the cylinder. We design our test after visualizing all such challenges our cylinder will have to go through.

We have developed all the processes a hydraulic cylinder has to go through in house from machining honing of tubes, grinding of piston rods machining. Only hard chrome plating and is out sourced.

We offer special coating (eg. ceramic coating) on piston for hydraulic cylinders subjected to heavily corrosive environments

Capacity

We have manufactured all types of hydraulic cylinders, some are standard some conceived for a very specific and special job the cylinder had to perform at a very responsible position on the process line. Email us to know more about our fail safe hydraulic cylinder design*.

1. FAIL SAFE HYDRAULIC CYLINDER*

2. VARIABLE STROKE HYDRAULIC CYLINDER

3. TELESCOPIC HYDRAULIC CYLINDER

4. MILL TYPE HYDRAULIC CYLINDER

5. END CUSHIONED HYDRAULIC CYLINDER (For fast applications)

6. INTEGRATED HYDRAULIC CYLINDERS (Our integration option eliminates hoses and tubing from the manifold block, reducing the use and cost of additional purchased parts and preventing contamination during machine assembly. Valve integrated cylinders are streamlined for a better fit, better appearance, and increased clearance on equipment.)

7. JACKETED HYDRAULIC CYLINDERS (For high temperature application, here an outer or jacket is fabricated on the cylinder body through which water can be circulated to maintain cylinder temperature)

8. HYDRAULIC CYLINDERS FOR SPIRAL AND STRAIGHT SEAMED STEEL PIPE MANUFACTURING PLANTS

9. HYDRAULIC CYLINDERS FOR STRIP FLATTENING MACHINE FOR MANUFACTURING SPIRAL SEAMED STEEL PIPE

10. HYDRAULIC JACK FOR CONSTRUCTION INDUSTRY

11. HYDRAULIC CYLINDERS FOR CONVEYERS IN STEEL MILLS

12. CLAMPING CYLINDERS

Hydraulic cylinder integrated with guide pipe for low force high bending moment applications

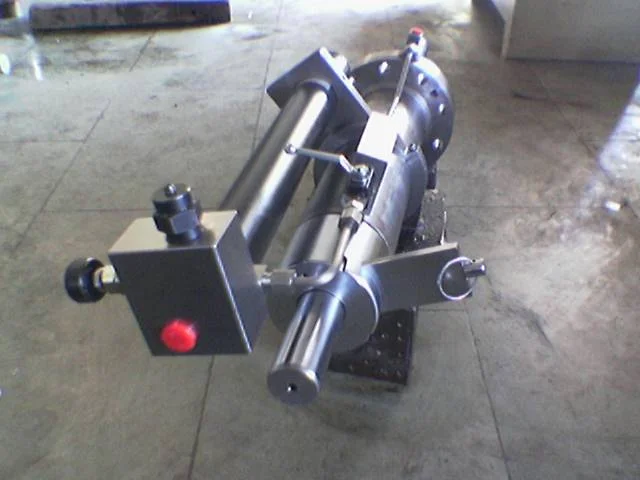

Hydraulic cylinder integrated with valves

Hydraulic cylinder integrated with valves and back up accumulator

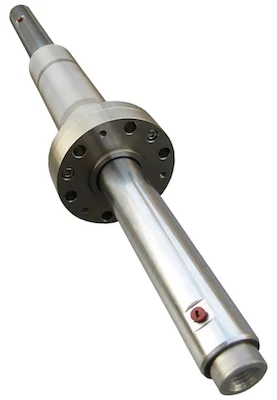

Hydraulic cylinder with ports on piston rod and load anchoring on body
